IR-CUT

Application areas: Vehicle surveillance lens

Item Number	Rated Voltage	resistance	Voltage Range	Max. effective aperture	Glass Thickness	Qty. of Glass

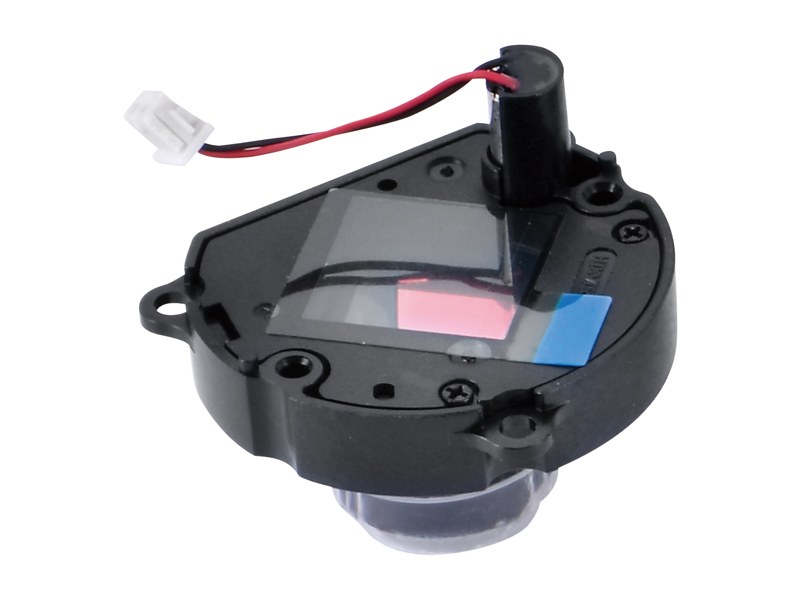

VIR19	3.5+/-0.5	25±5 Ω	3.5-5	M12	IR 0.3 AR 0.3	2

Application：Monitor the lens IR day and night switch, precision instruments.

Item Number	rated voltage	resistance	Voltage Range	Max. effective aperture	Glass Thickness	Qty. of Glass
VIR42	3 V	20±3% Ω	6V Max.	Φ8 mm	0.21 mm	2

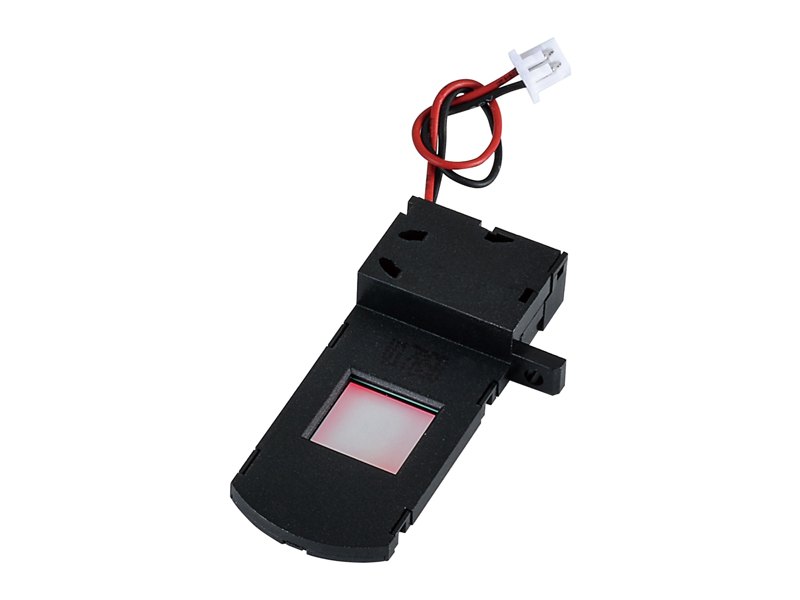

VIR13	3±0.5 V	20±10% Ω	2-6 V	Φ8 mm	0.3 mm	2

Application areas: security monitoring equipment, monitors, digital cameras

Item Number	rated voltage	resistance	Voltage Range	Max. effective aperture	Glass Thickness	Qty. of Glass

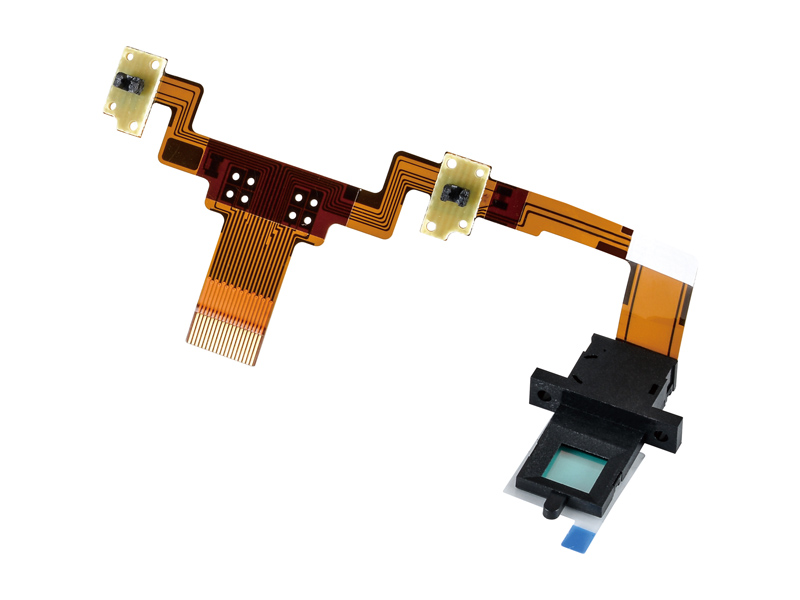

VIR46	3.5 V	180±3% Ω	3.5 V Max.	Φ7 mm	0.21 mm	1

Application areas:Large-aperture surveillance lenses such as intelligent traffic and face recognition

Item Number	resistance	Max. effective aperture	Glass Thickness	Qty. of Glass	Rated test conditions	Voltage Range

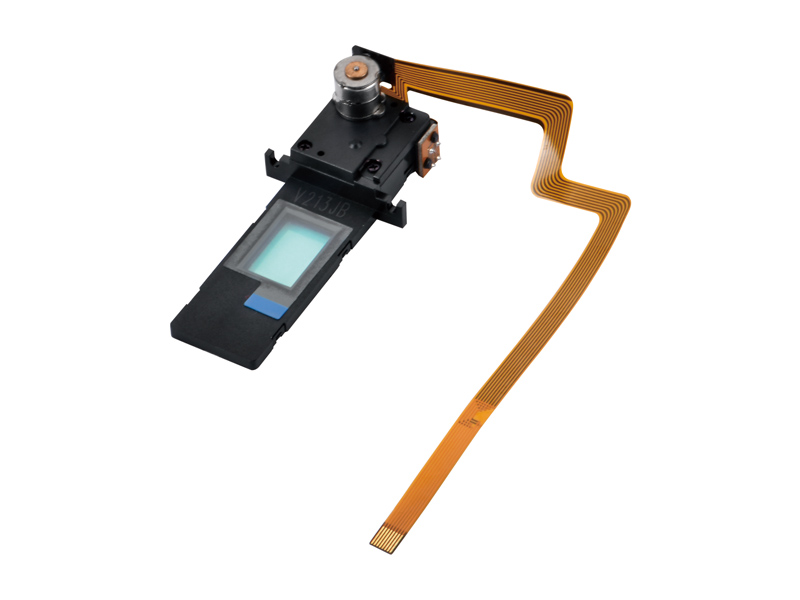

VIR128	20 Ω±10%	14.5*9.5 mm	IR 1.1 Polarizer 1.08	2	3.3V800 PPS	3 V-4 V

Application areas:Large-aperture surveillance lenses such as intelligent traffic and face recognition

Item Number	resistance	Max. effective aperture	Glass Thickness	Qty. of Glass	Rated test conditions	Voltage Range

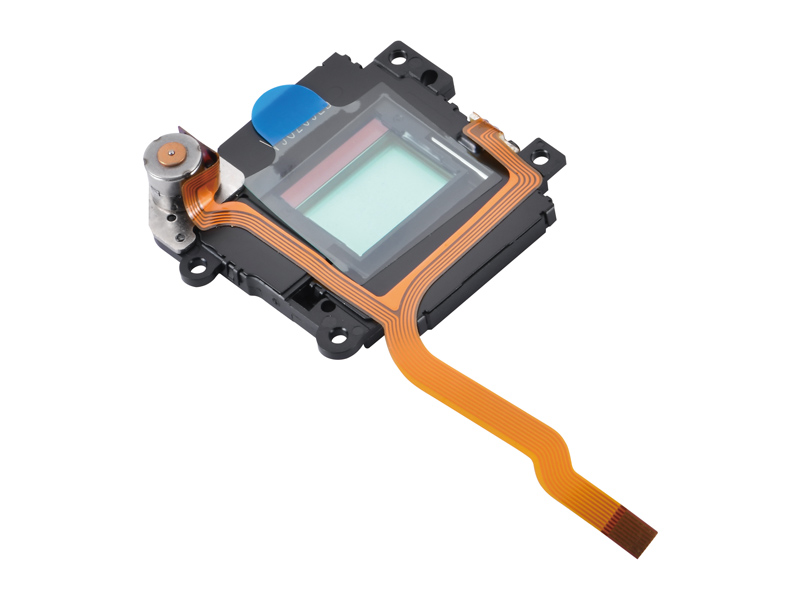

VIR98	20Ω±7%	17*12.6 mm	IR 0.455 AR 0.5	2	3.0V1000 PPS	3V-5V
